Motorized Mount by Balance Box(e-Box®)
2

Motorized Mount by Balance Box(e-Box®)

The e-Box® is a product range of high quality motorized display panel mounts, featuring the fastest and most stable technology on the AV market today.  Make height adjustments to your display panel or tilt it back up to 90 degrees for a completely flat work surface with the simple push of a button.  The innovative anti-collision feature prevents accidental finger pinching.

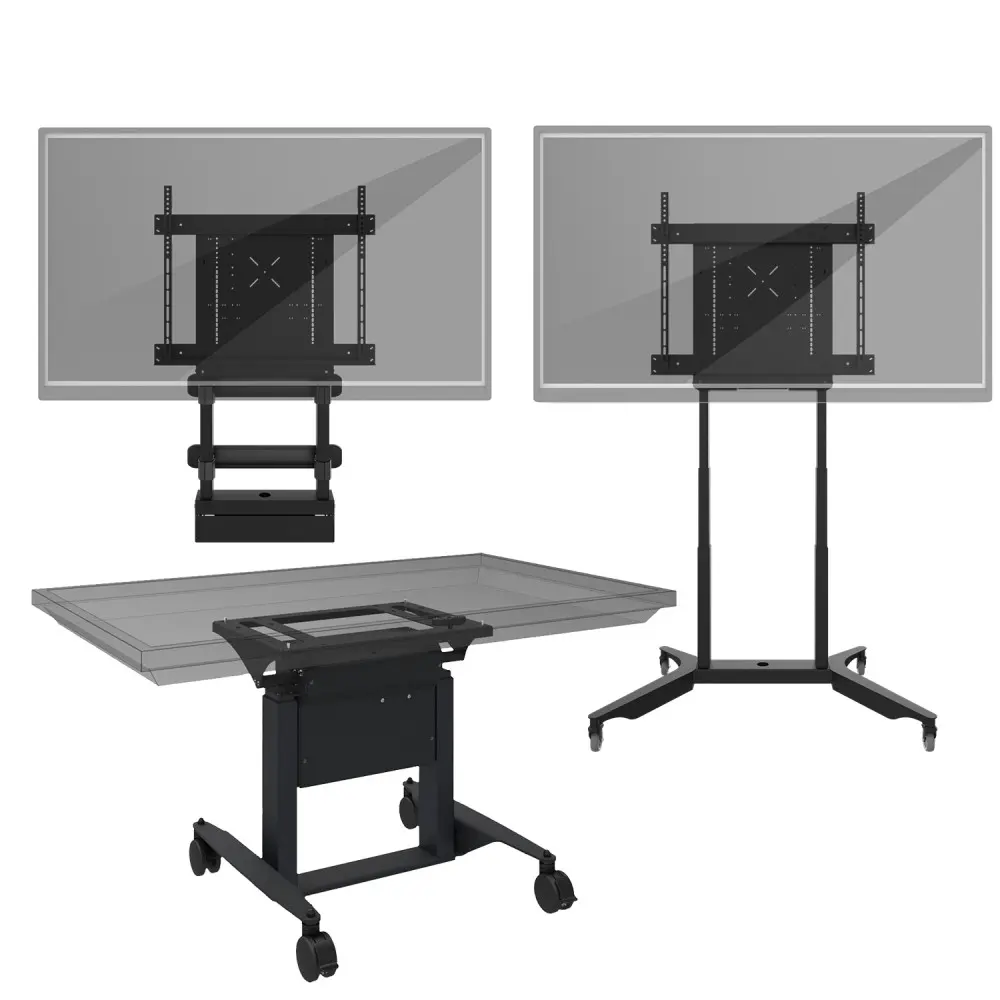

We have three products with different models and functions for you to choose from, and each product has its own unique features.

r2

Motorized

r3

high load capacity

r1

Safety certification

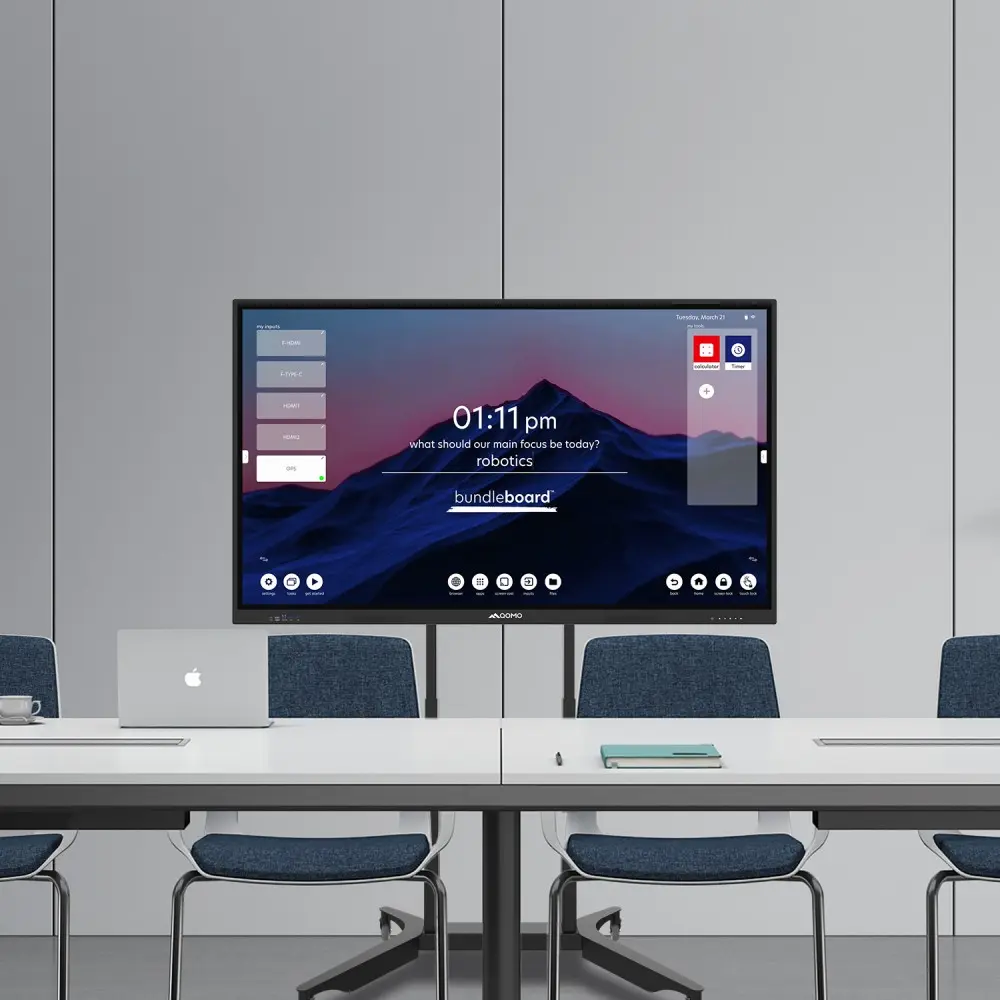

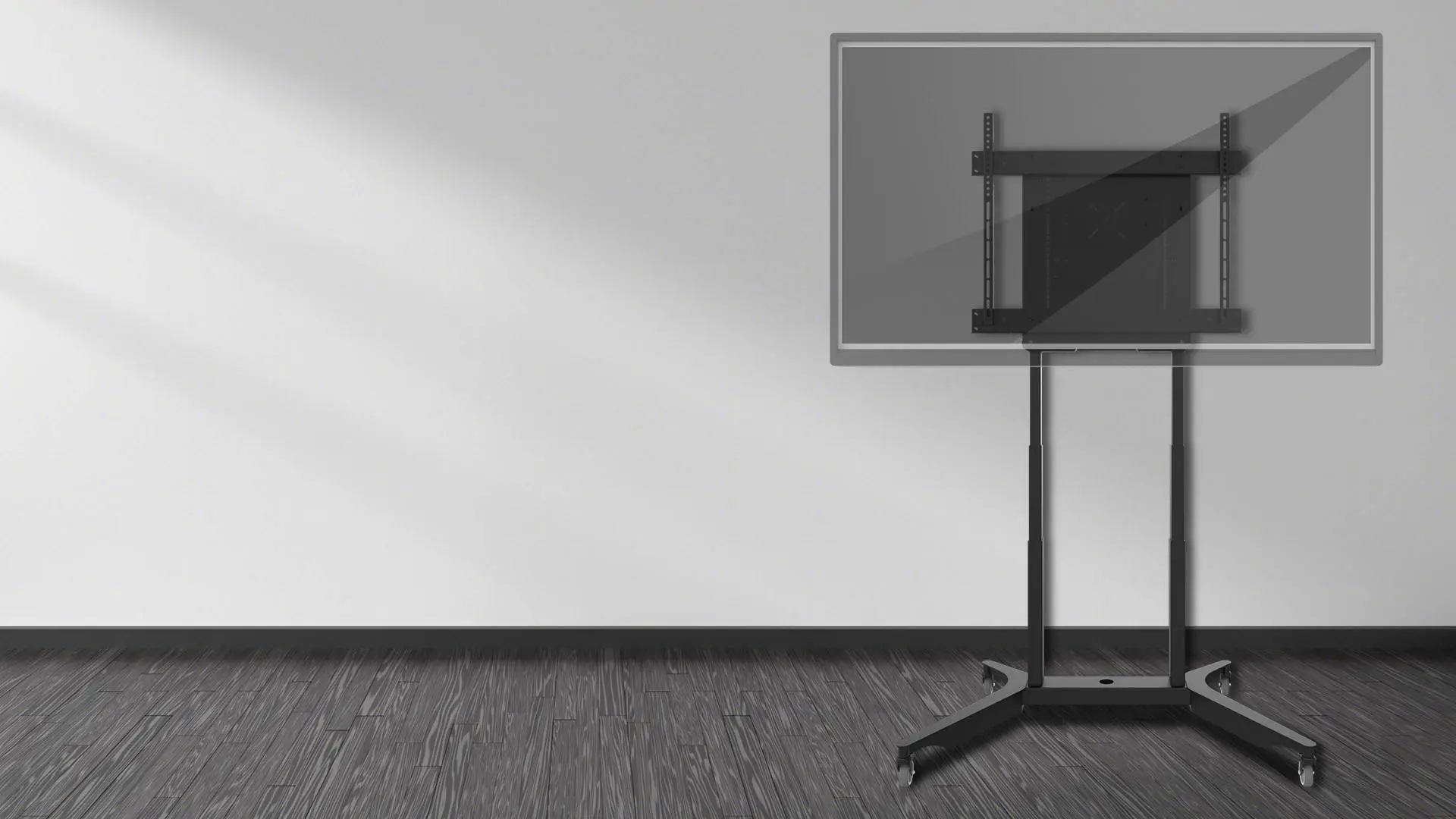

Mobile Stand

The Mobile Stand (487A11011 e-Box) doesn't require manual adjustment for height. It is electrically powered, so you don't need to exert any extra effort. This product will help you adjust it to the optimal position.

ca

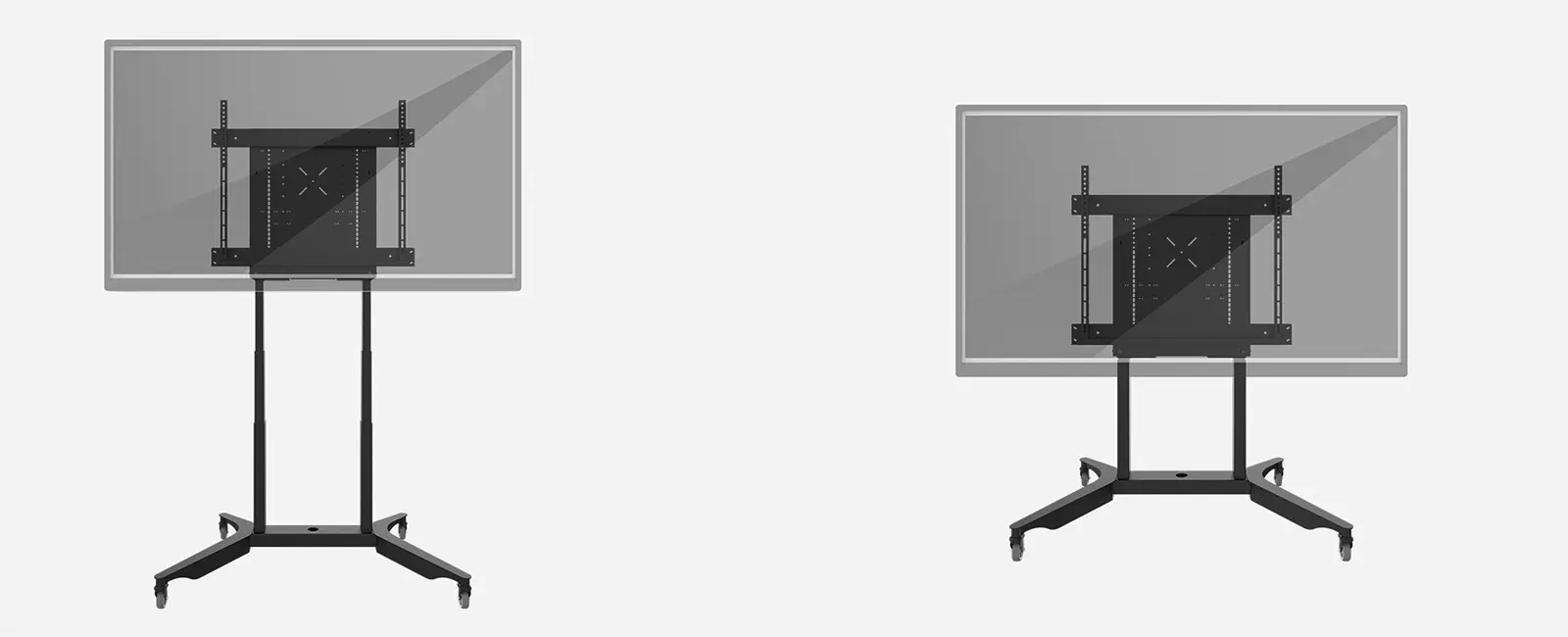

The Mobile Stand, has a travel of 25.6 inches (650 mm) and a speed of 1.5 inches/sec (38 mm/sec), enabling precise adjustments for optimal panel use.

Unrivalled Load-Bearing Capacity, Maximally Supporting 98-Inch Large Screens

The Mobile Stand has a Maximum Screen Size of 98" with a weight capacity of 308.6 lbs (140 kg), and it requires either the QBB481A70 VESA or BundleBoard H VESA for the VESA bracket / screen interface.

5

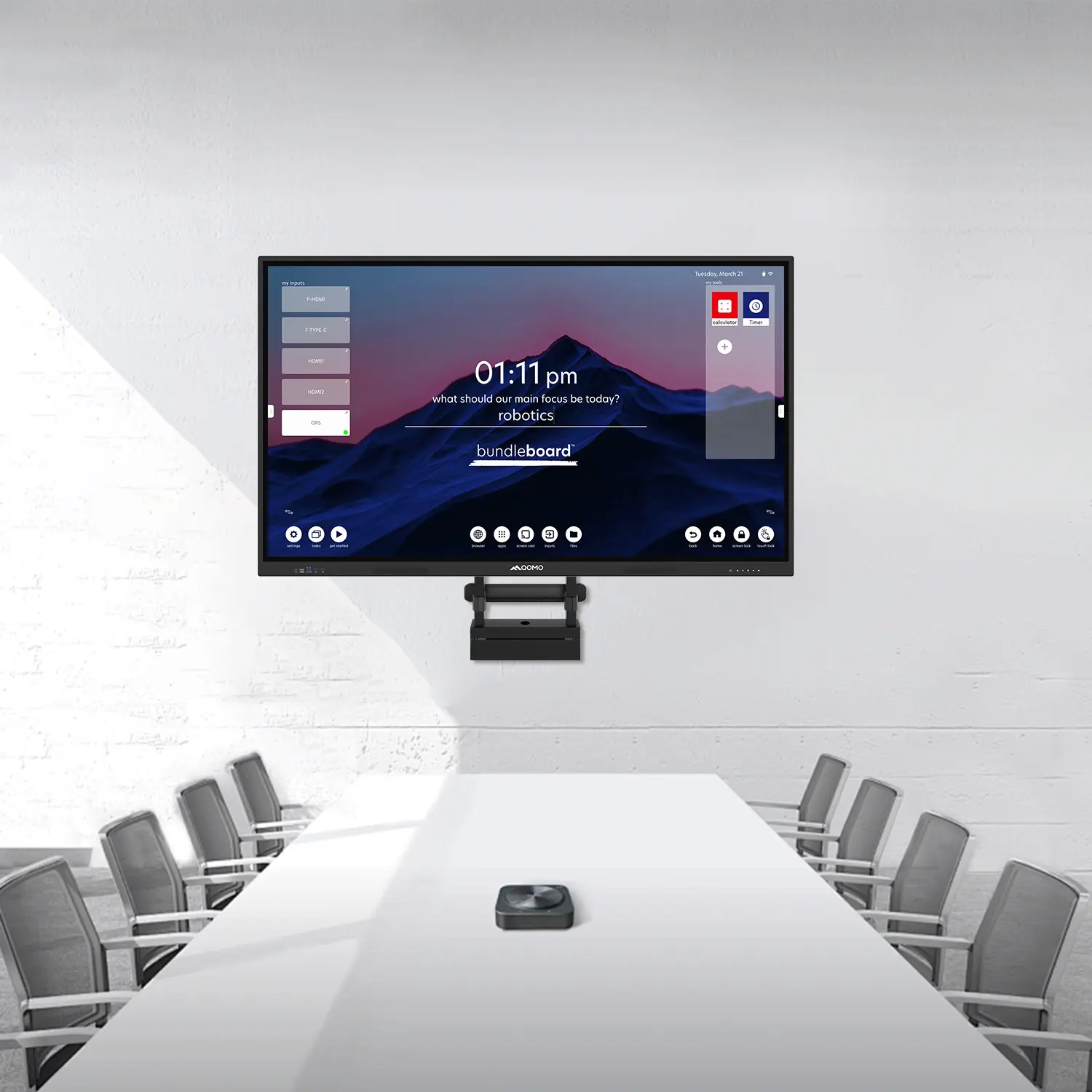

Wall Mount

The Wall Mount (487A12011 e-Box) features an extremely powerful load-bearing capacity. Moreover, it makes height adjustment a breeze. With just a light touch on the operation panel, the Wall Mount will automatically adjust itself to the height you desire.

ca2

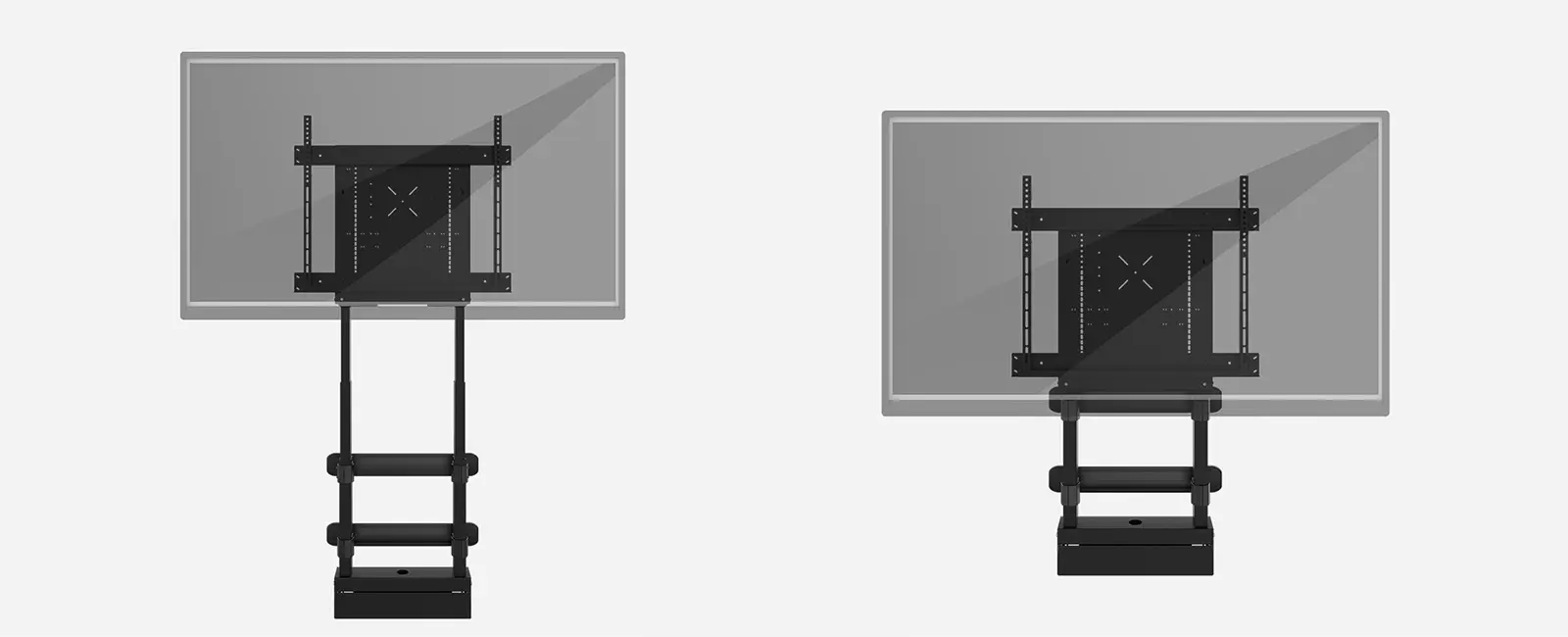

The Wall Mount, with a travel of 25.6 inches (650 mm) and a speed of 0.91 inches/sec. (23 mm/sec), enables you to adjust the height of the display panel easily and safely.
8

Secure Wall Attachment and Superior Load Support Strength

The Mobile Stand has a Maximum Screen Size of 98" with an outstanding load-bearing capacity of up to 440 lbs (220 kg). Similarly, for its VESA bracket / screen interface, either the QBB481A70 VESA or BundleBoard H VESA is required.

Tillt & Table

Tillt & Table (487A03 e- Box) features a unique tilting function, allowing it to tilt up to 90° like a table to hold your display tablet, making it suitable for various conferences and exhibitions.

ca3

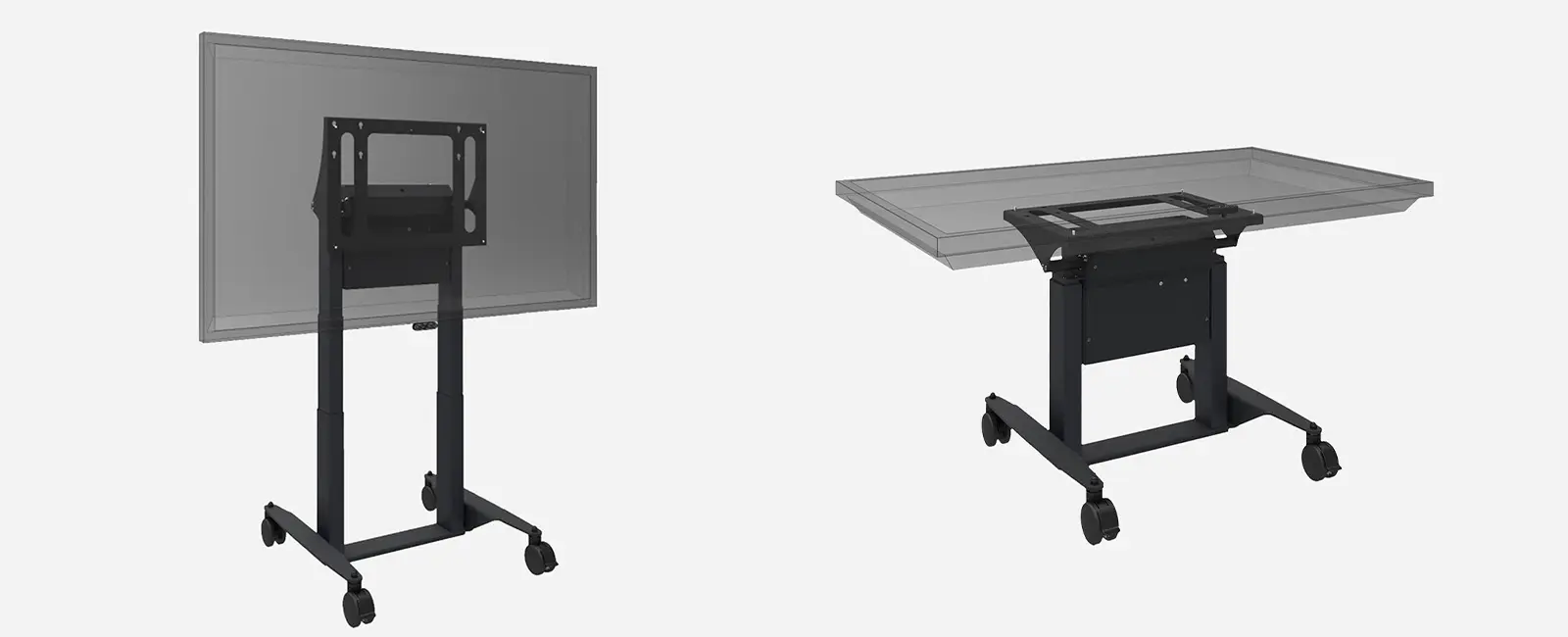

Tillt & Table not only has the function of adjusting the height up and down but also possesses a unique feature of tilting up to 90°. Its travel specifications are 26” [660 mm] (horizontally ranging from 28” to 54” and vertically from 26.2” to 52.2”), and the speed is 1.5”/Sec. [38 mm/Sec.], enabling you to make quick adjustments.

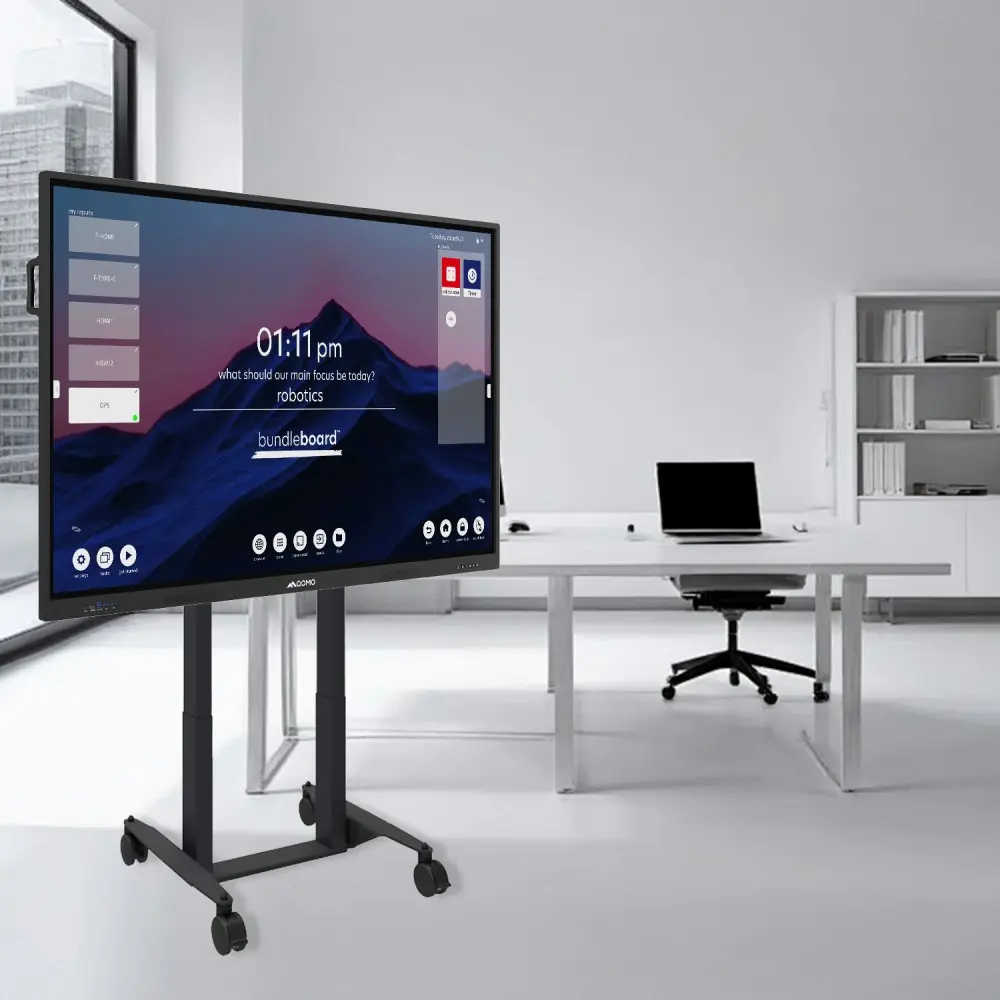

Sturdy and safe, it's your most convenient digital panel stand

lt & Table features a double column design, which not only allows it to support panels ranging from 42” to 75” but also enables it to bear a weight of up to 210 lbs, making it highly practical and reliable.

11

Multiple application scenarios

Whether it's in a conference room, a classroom or an industry exhibition, you can choose e-Box® as your solution.

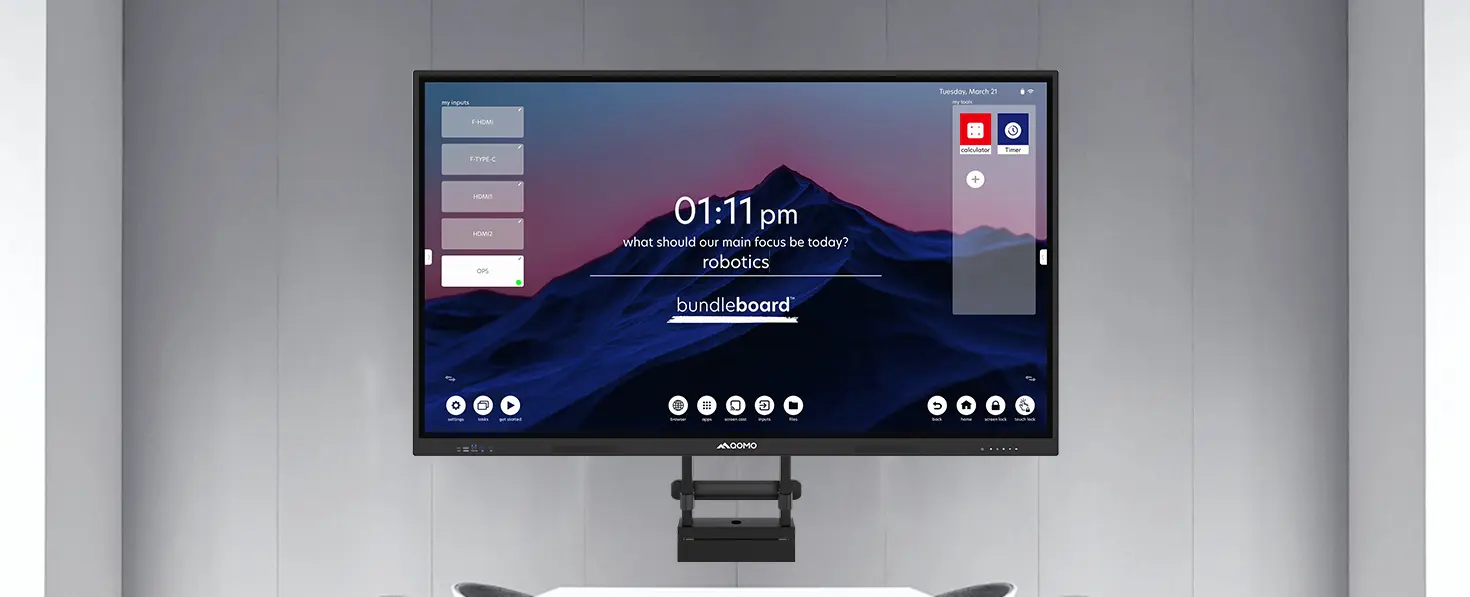

Conference Room

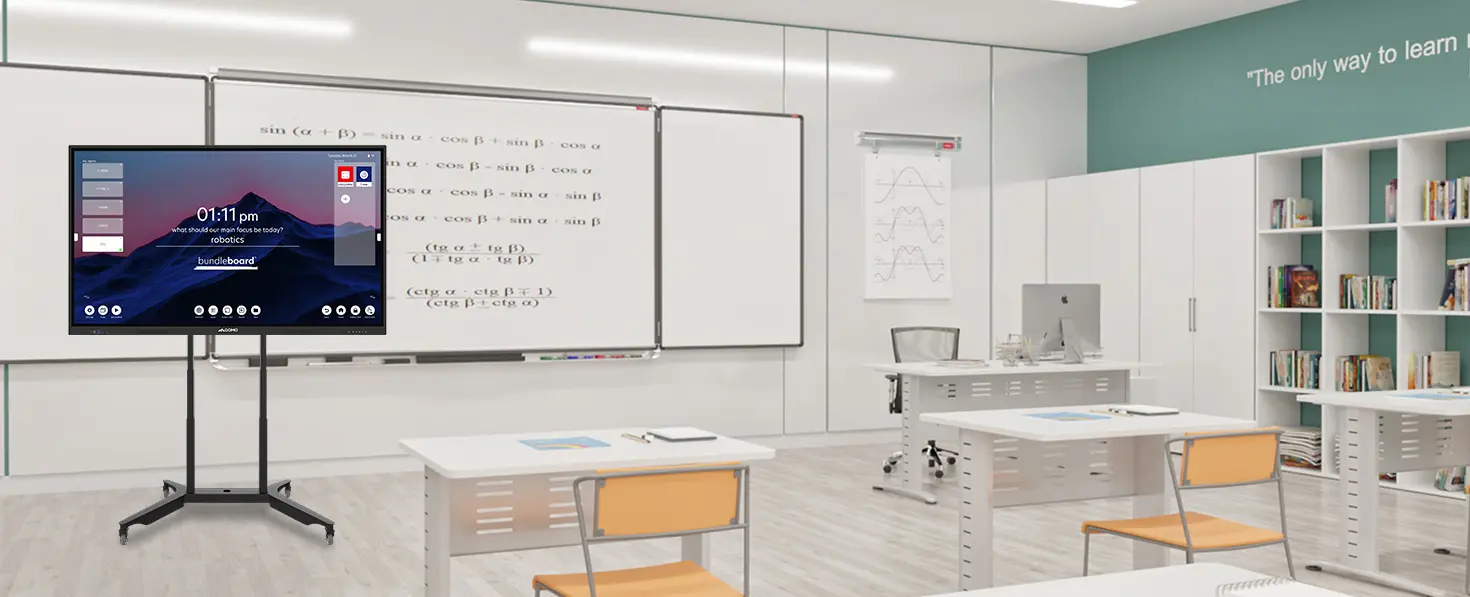

Classroom

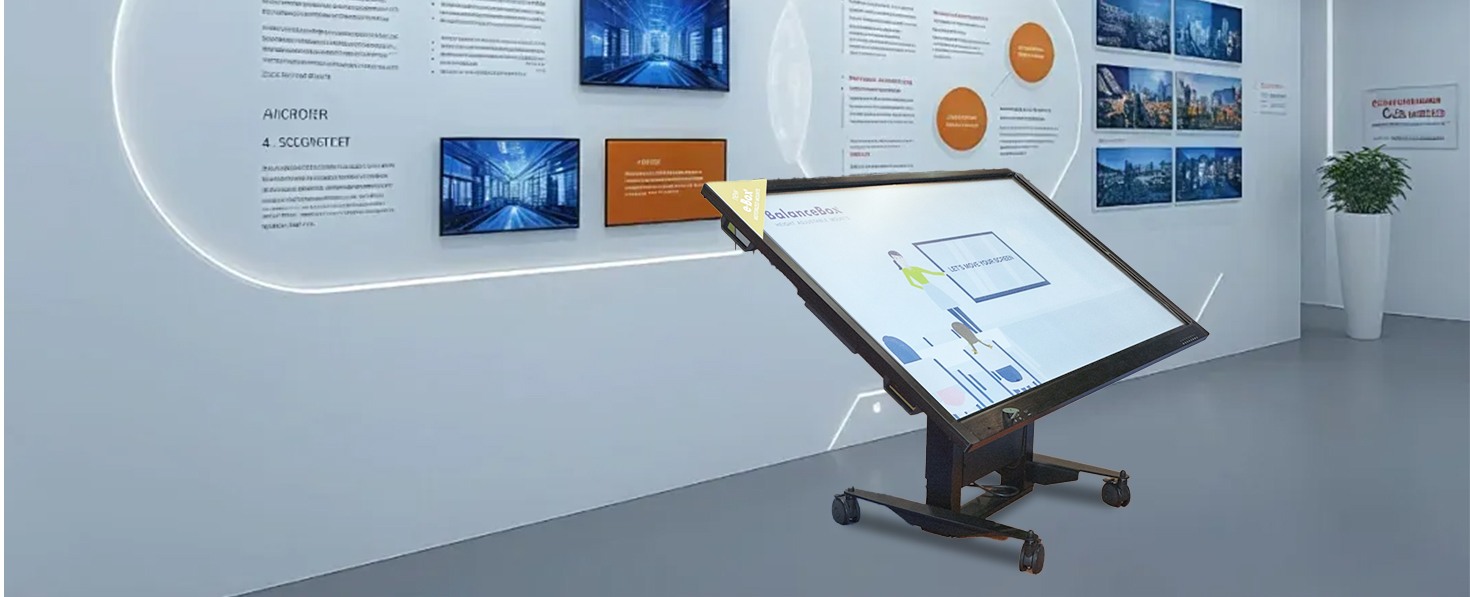

Exhibition
Conference room
classroom
exhibition

QOMO is dedicated to presenting you with a customized office experience that combines intelligence and efficiency.

Products FAQs

01 /

Does the e-Box® have a built-in battery or does it need to be plugged in for use?

The e-Box® needs to be plugged in for use. For example, both the Mobile Stand and the Wall Mount require an electrical supply with a voltage range of 110 - 240V and a frequency of 50 - 60Hz, while the Tilt & Table requires 120V / 60Hz.
02 /

Is it safe to use the e-Box®?

The e-Box® is equipped with the Dual Anti-collision feature when adjusting the height, which can ensure your safety during use. However, we still hope that you can use it with caution. Even though we have already taken the best safety measures, we hope that no accidents will occur when you are using it.

Product Specifications

Mobile Stand Wall Mount Tilt & Table (90 degrees from vertical to horizontal)
Part Number 487A11011 e-Box 487A12011 e-Box 487A03 e-Box
Maximum Screen Size 98"- 308.6 lbs (140 kg) 98"- 440 lbs (220 kg) 75"- 210 Lbs (95 kg)
Travel 25.6" [650 mm]; Speed 1.5"/sec. [38 mm/sec.] 25.6" [650 mm]; Speed 1.5"/sec. [38 mm/sec.] 26"[660](horiz. 28" to 54; vert.26.2"t0 52.2"): Speed 1.5"/sec[38 mm/Sec.]
VESA bracket / screen interface QBB481A70 VESA or BundleBoard H VESA regjuired QBB481A70 VESA or BundleBoard H VESA regjuired Included from 200x400,400x400,600x200 and600x400
Safety / certification Dual Anti-collision feature,CE; UL 962; UL-EN-CIE 62368-1 Dual Anti-collision feature,CE; UL 962; UL-EN-CIE 62368-1 Anti-collision feature (on height adjust only); UL registered(UR)*; CE; ISO-EN60950
Material and color Steel structuralparts. powder coated Black RAL9005 Steel structuralparts. powder coated Black RAL9005 Steel structural parts, powder coated black RAL9005
Controls Wired remote control for screen-edge mounting with 3 programmable presets Wired remote control for screen-edge mounting with 3 programmable presets Wired remote control for scrcen-edge mounting for up/down/tilt
Electric 110-240V, 50-60Hz; 10% duty cycle(6min/hour); Power consumption max 300W 110-240V, 50-60Hz; 10% duty cycle(6min/hour); Power consumption max 300W 120V /60Hz; 200W piezo motor: 10% duty cycle (6min/hour); UL962 cert.
Product dimensions (without screen) 46.8" [1188 mm]x 29.3”[743 mm]x 53"[1346mm] 22.83" [580 mm]x 6.26" [159 mm]x 53.8"[1366,6 mm] 28.5”[725 mm]x 30.6"[777 mm]x 28"[710 mm]
shipping dimensions (boxed) 31.5"[800 mm]x23.6" [600 mm]x 10.4"[264mm] 31.5" [800 mm]x 23.6" [600 mm]x 10.4" [264mm] 44.8"[1140 mm]x22.5”[570mm]x 13.8" [350 mm]
Gross Weight/ Net Weight 109.1 lb. [49.5 kgl/ 100.8 lb. [45.7 kg] 103.4 lb. [46,9 kg]/ 95.0 lb. [43,1 kg] 132 lbs [60 kg] / 121 lbs [55 kg]
Optional Accessories QBB481A70 VESA, Lockable Back Cove! (QBB481A92). Laptop Keyboard Tray (QBB481A73), Heavy Duty Casters (QBB481A81) QBB481A70 VESA, Lockable Back Cove! (QBB481A92). Laptop Keyboard Tray (QBB481A73), Heavy Duty Casters (QBB481A81) Univorsal VESA brackat adaptorfor 600 or 800x600 (QBB481A117 VESA)
